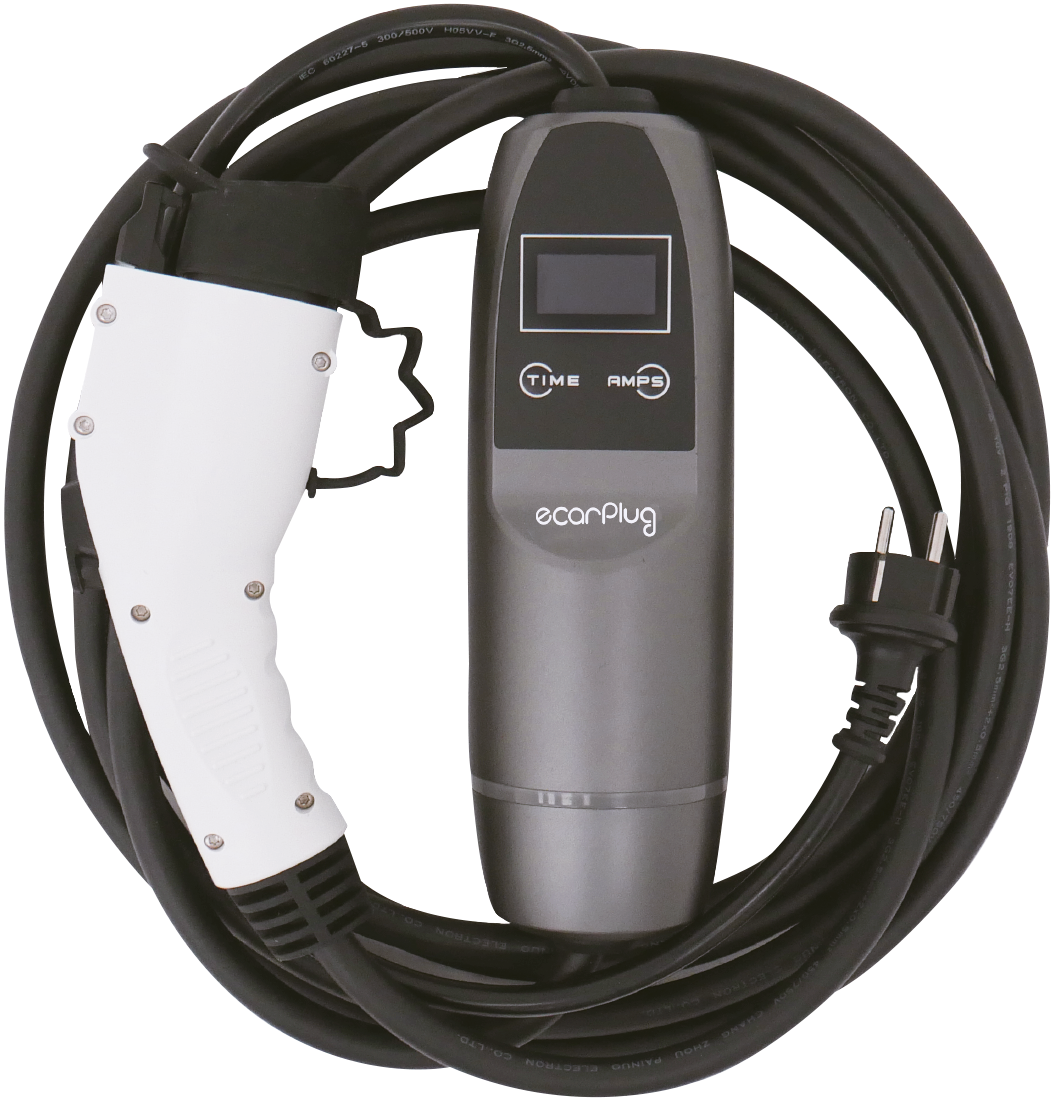

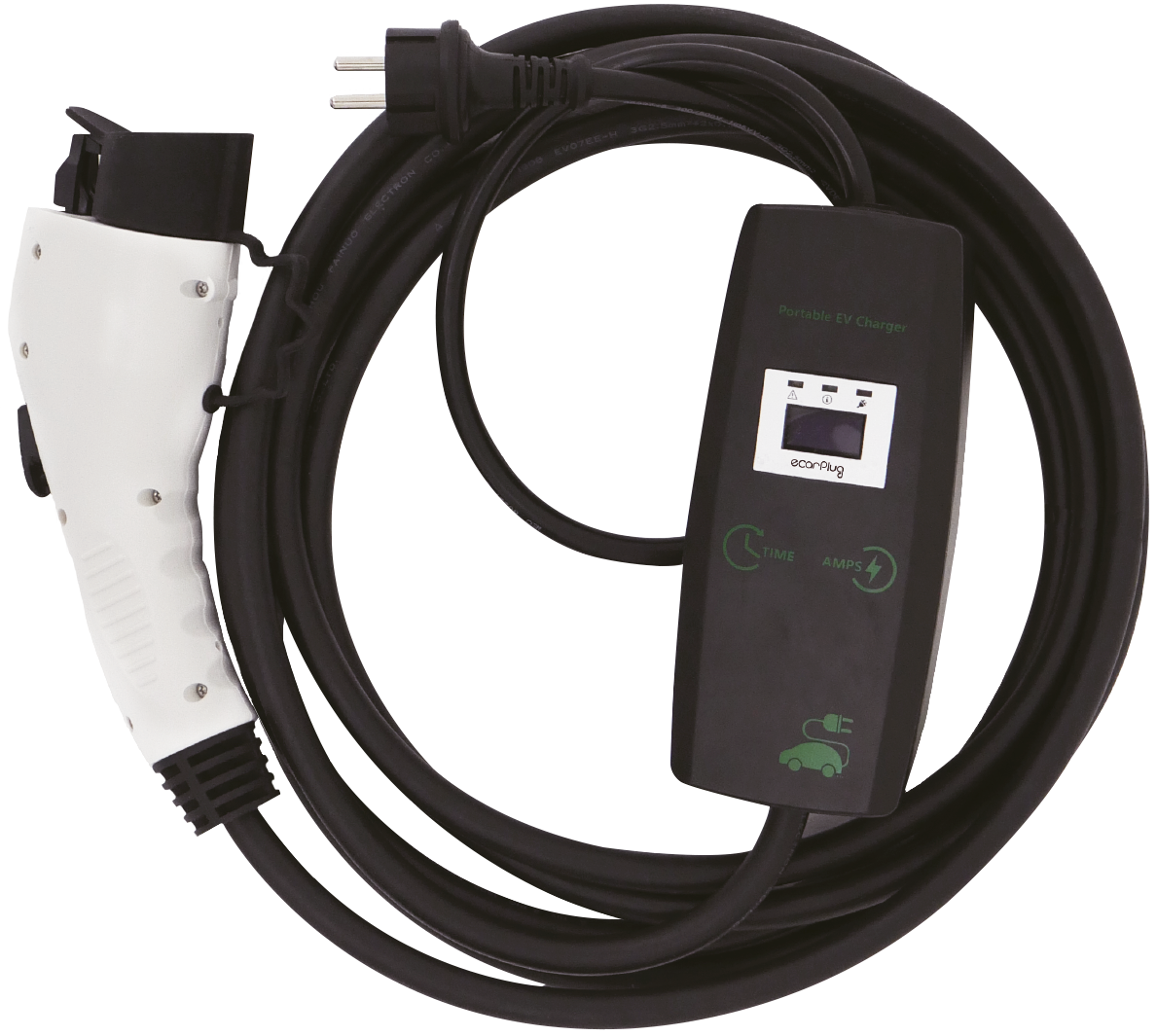

Portable Charger

KPU model

Features

Premium/ Standard
•Comfortable for charging and portability, Specially, for uninstalled area
•Support scheduled charging function
•Variable Charging Capacity Modulation
•Use as a home charger and personal charger using a non-public smartphone APP.
•User interface: 2-inch OLED, smartphone APP

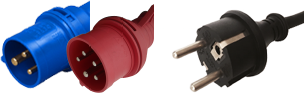

•Option: Customers can choose a power plug
•Size: 380 mm (W) x 80 mm (H) x 50 mm (D)






  • Specification

    Classification Detailed standards
    Rating Input Single-phase 220V, 16A (3.5kW) / 32A (7kW) / AC 3-phase 220V, 16A (11kW) / 64A (21kW)
    Output Single-phase 220V, 0 ~ 64A(21kW)
    Rating range ±10%
    Frequency 60Hz
    Environmental conditions Temperature -25℃ ~ 40℃
    Humidity 5% ~ 95% (there must be no dew formation)
    Protection grade IP65
    Safety Overvoltage Output cut off
    Overcurrent Output cut-off
    User authentication type RFID card or smartphone app (Bluetooth connection)
    User interface LED Displays standby, charging, error states
    Voice guidance Charger status and user guidance
    Smart Phone User authentication, payment, fee charging functionality, etc
    Viewing function for charging fees, charging history, location, etc.
    Size 380mm(W) x 80mm(H) x 50mm(D)
