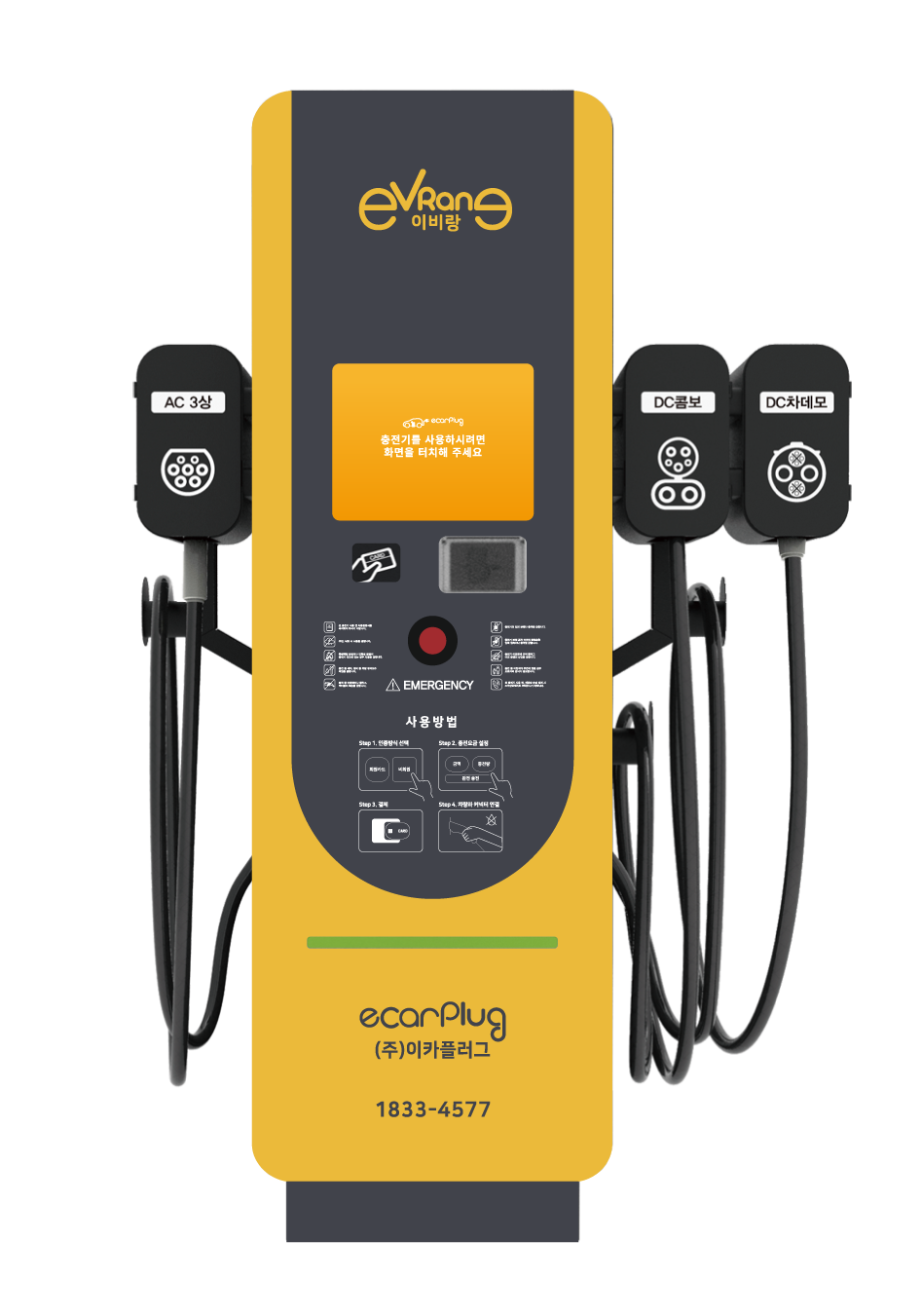

SPV Series
Features
•Auto brightness control of LCD panel(day/night)
•High tolerance in wide ranges of temperature and humidity
•Capable of limiting charging capacity depending input power
•Public / non-public available
•Public connection to evRang main control system
•Non-public connection to local control system or to private mobile
•Anti-rust coating of main body
•Stmultaneous charging(option)
•User Interface : 12" color touch LCD, Smart phone APP
•Payment System : RFID, Smart phone APP, Credit card
•Redundancy of communication networks to secure confidence in charging infrastructure*
•Size: 550 mm (W) x 1750 mm (H) x 850 mm (D)
•High tolerance in wide ranges of temperature and humidity
•Capable of limiting charging capacity depending input power
•Public / non-public available
•Public connection to evRang main control system
•Non-public connection to local control system or to private mobile
•Anti-rust coating of main body
•Stmultaneous charging(option)
•User Interface : 12" color touch LCD, Smart phone APP
•Payment System : RFID, Smart phone APP, Credit card
•Redundancy of communication networks to secure confidence in charging infrastructure*
•Size: 550 mm (W) x 1750 mm (H) x 850 mm (D)
-
Specification
Classification Detailed standards Rating Input 3-phase 380V,100A(50kW) ~ 200A(100kW) Output DC 200Vdc ~ 500V, 100A / 200A Rating range ±10% Frequency 60Hz Environmental conditions Temperature -25℃ ~ 40℃ Humidity 5% ~ 95% (there must be no dew formation) Protection grade IP55 Safety Overvoltage Overcurrent Output cut-off User authentication type RFID card or smartphone app (Bluetooth connection) User interface LED standby, charging, error states Displays Voice guidance Charger status and user guidance Smart Phone User authentication, payment, fee charging functionality, etc
Viewing function for charging fees, charging history, location, etc.Size 550mm(W) x 1,750mm(H) x 850mm(D)
