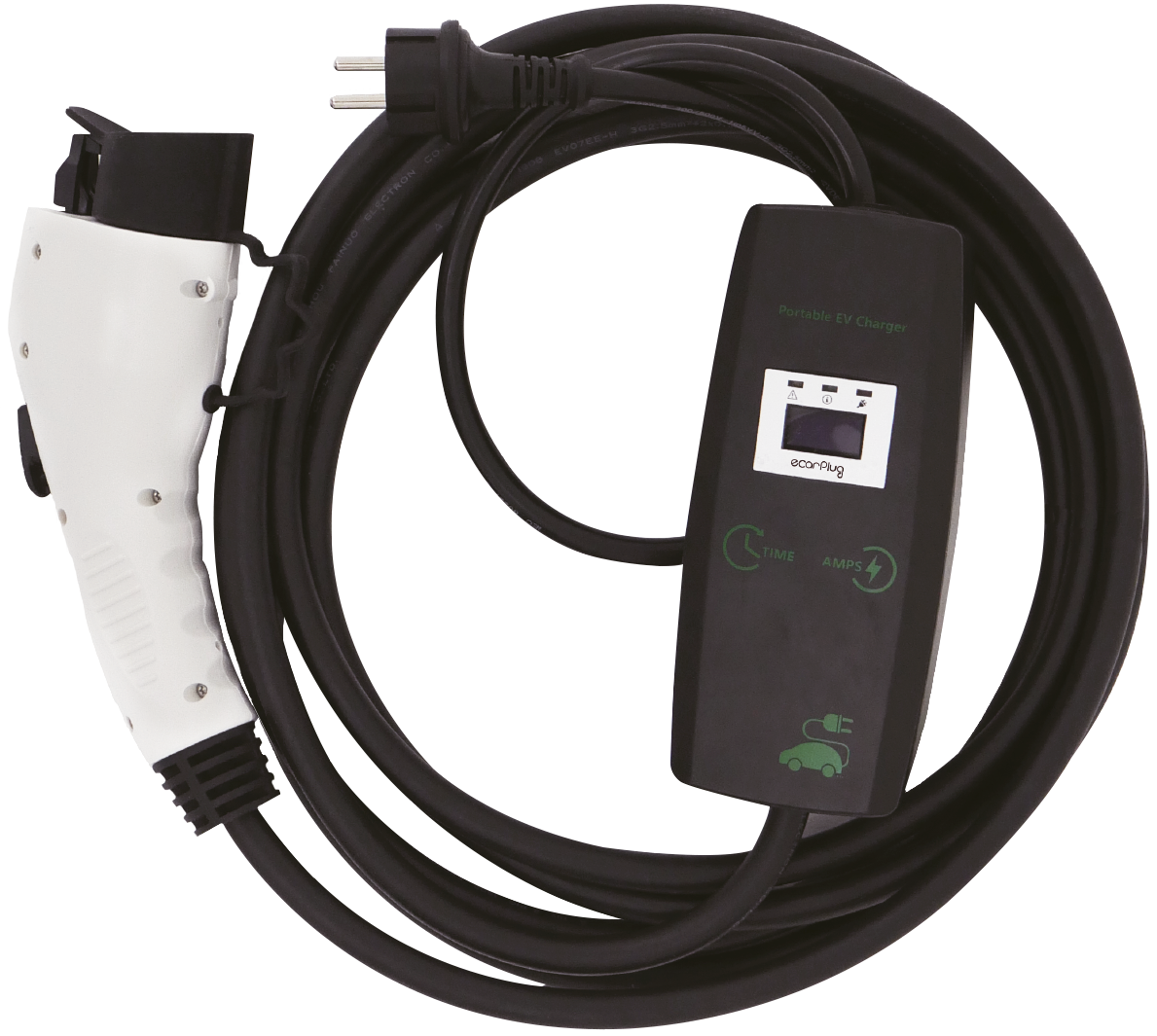

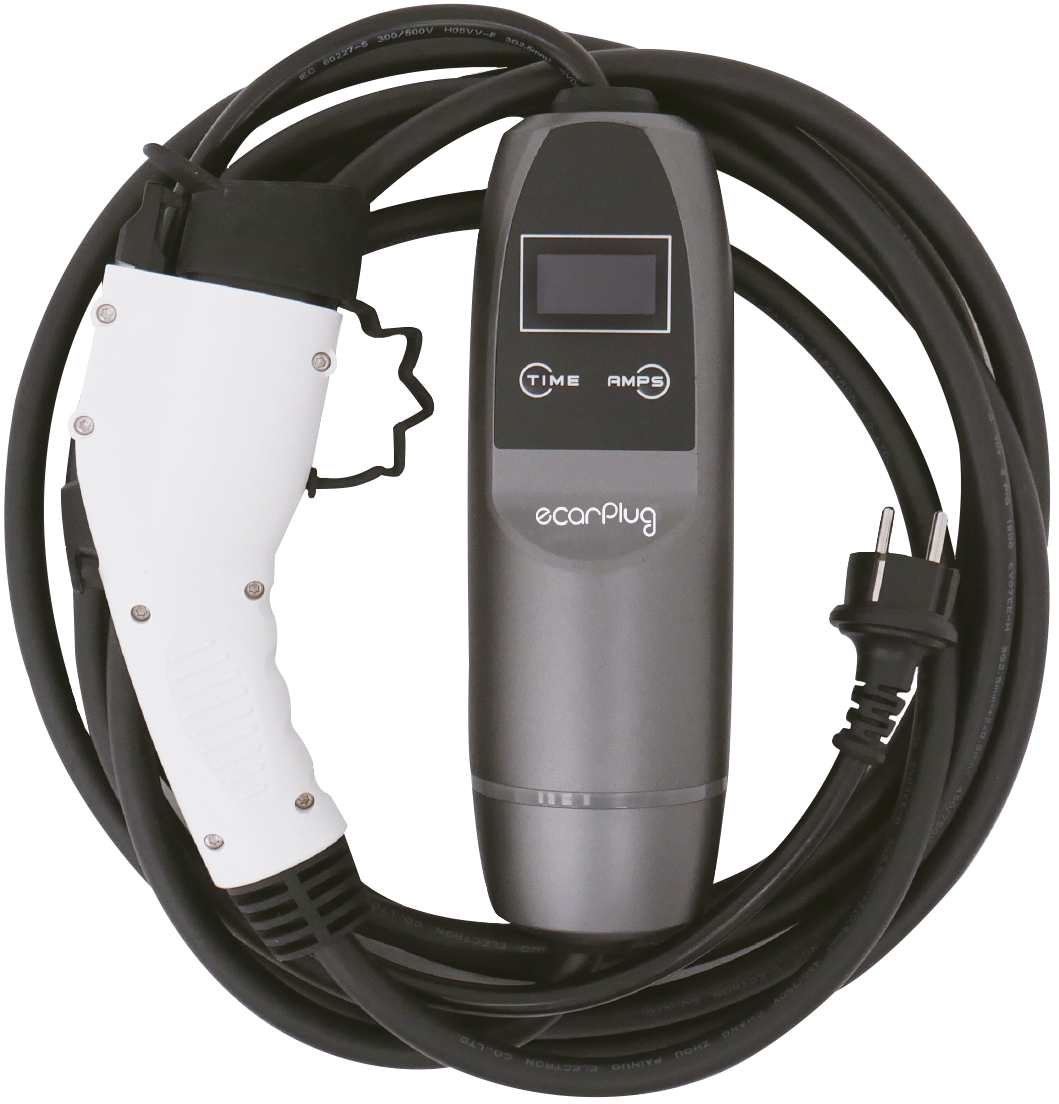

KPU model
Features
Premium/ Standard
•Comfortable for charging and portability, Specially, for uninstalled area
•Support scheduled charging function
•Variable Charging Capacity Modulation
•Use as a home charger and personal charger using a non-public smartphone APP.
•User interface: 2-inch OLED, smartphone APP
•Support scheduled charging function
•Variable Charging Capacity Modulation
•Use as a home charger and personal charger using a non-public smartphone APP.
•User interface: 2-inch OLED, smartphone APP

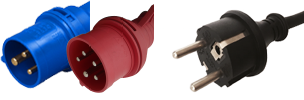

•Option: Customers can choose a power plug
•Size: 380 mm (W) x 80 mm (H) x 50 mm (D)
•Size: 380 mm (W) x 80 mm (H) x 50 mm (D)
-
Specification
Classification Detailed standards Rating Input Single-phase 220V, 16A (3.5kW) / 32A (7kW) / AC 3-phase 220V, 16A (11kW) / 64A (21kW) Output Single-phase 220V, 0 ~ 64A(21kW) Rating range ±10% Frequency 60Hz Environmental conditions Temperature -25℃ ~ 40℃ Humidity 5% ~ 95% (there must be no dew formation) Protection grade IP65 Safety Overvoltage Output cut off Overcurrent Output cut-off User authentication type RFID card or smartphone app (Bluetooth connection) User interface LED Displays standby, charging, error states Voice guidance Charger status and user guidance Smart Phone User authentication, payment, fee charging functionality, etc
Viewing function for charging fees, charging history, location, etc.Size 380mm(W) x 80mm(H) x 50mm(D)
