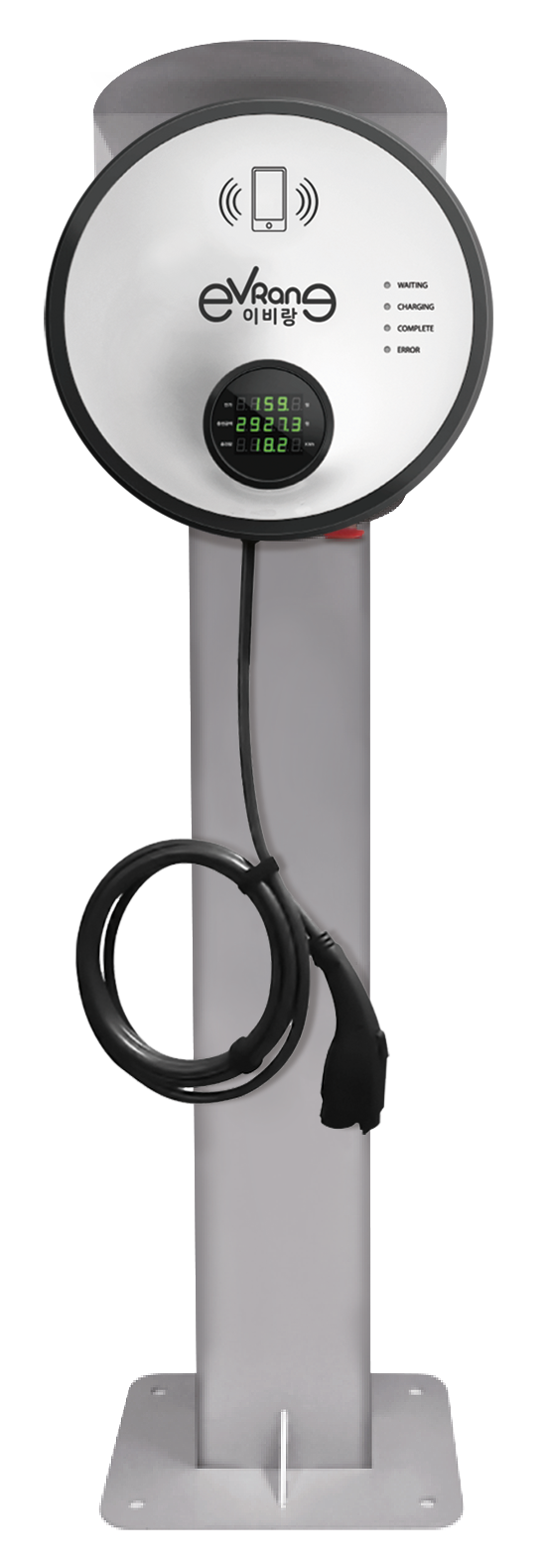

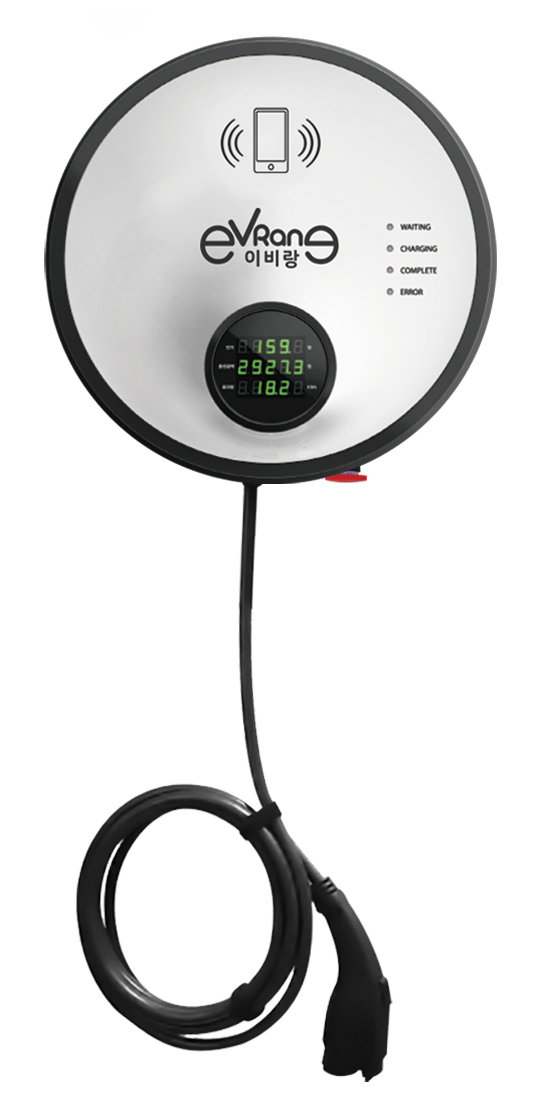

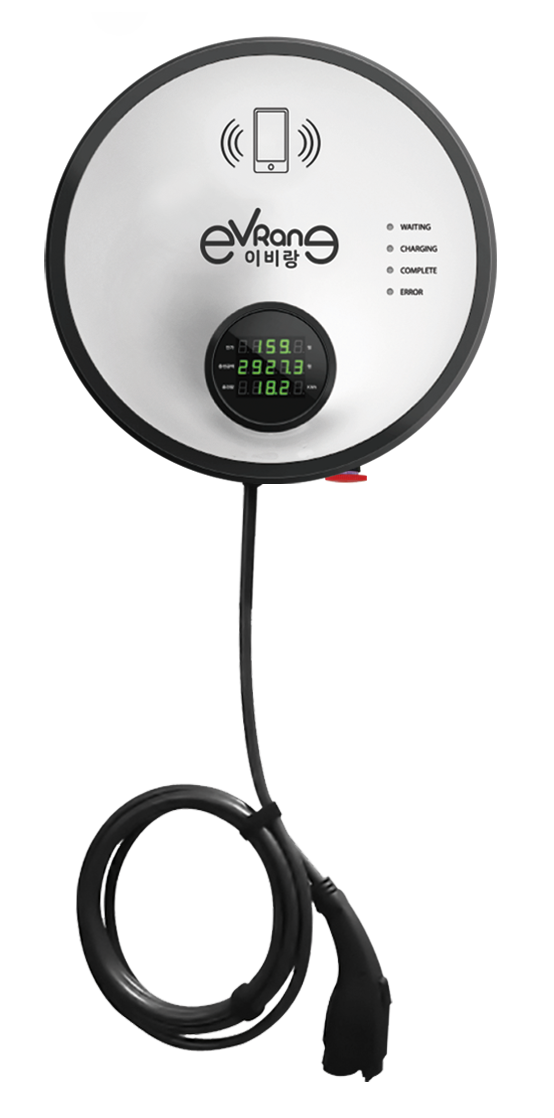

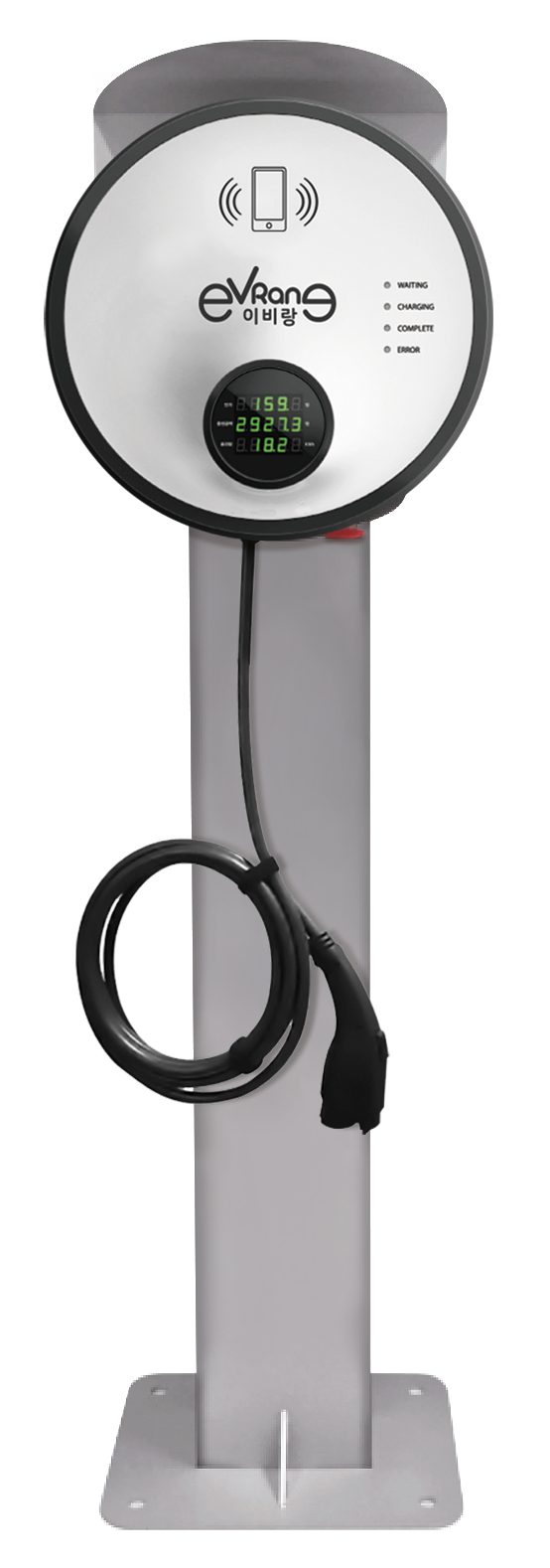

CPT Model(Public / Non-public)
Features
•User-friendly product design
•Operate charger control system by smart phone
•Real-time information on location, status, and payment
•Single or Dual charger support system
•User Interface: LED Status, Voice guidance information, RFID, Smart phone APP
•Earth leakage breaker recovery function*
•Support dual connections through Ethenet and mobile phone(APP) in parallel
•Size: 420 mm (D) x 150 mm (H)
-
Specification
Classification Detailed standards Rating Input Single-phase 220V, 32A(7kW) / 64A(14kW) / 96A(21kW) Output Single-phase 220V, 0 ~ 96A(21kW) Rating range ±10% Frequency 60Hz Environmental conditions Temperature -25℃ ~ 40℃ Humidity 5% ~ 95% (there must be no dewiness) Protection grade IP44 Safety Overvoltage Output cut-off Overcurrent Output cut-off User authentication type RFID card or smartphone app (Bluetooth available) User interface LED Displays standby, charging, error states Voice guidance Charger status and user guidance Smart Phone User authentication, charging fee, payment function
viewing function for charging fees, charging history, location, etc.Size 420mm (D) × 150mm (H)
