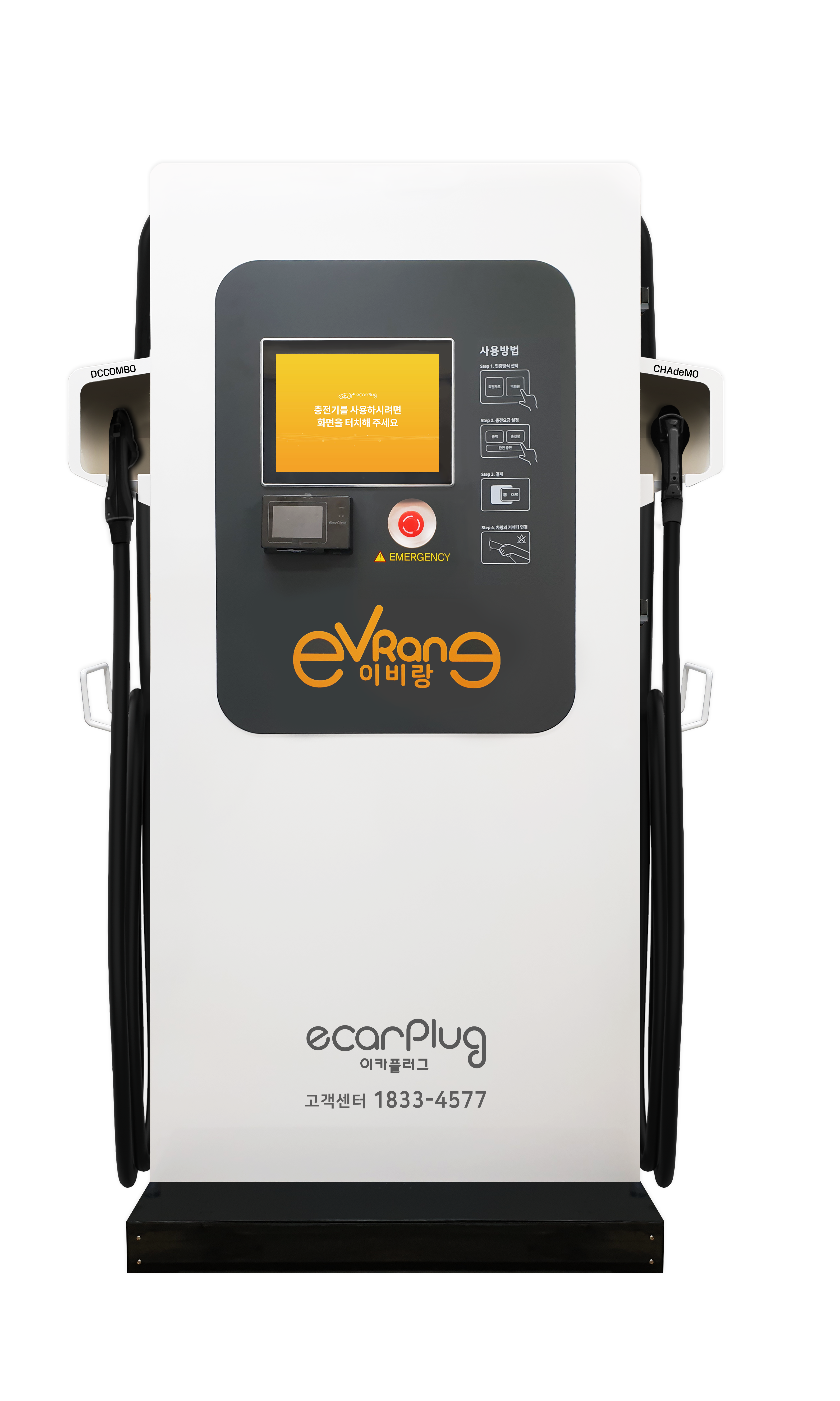

Quick charger

Quick charger

EPF Series


•Ergonomic design
•Parallel operation and power sharing of power module
 -Convertable to +/- 30kW by switching on/off each module
 -Highly reliabile operation in a parallel connection
•Support dual connections through mobile modem and  Smart phone(APP) in parallel
•High tolerance in wide ranges of temperature and humidity
•Capable of limiting charging capacity depending input power
•Anti-rust coating of main body
•Support DC Combo and DC CHAdeMO
•User Interface : 12" color touch LCD, Smart phone APP
•Payment System : RFID, Smart phone APP, Credit card
•Support dual connections through Ethenet and mobile phone  (APP) in parallel
•Size: 750 mm (W) x 1700 mm (H) x 300 mm (D)
  • Specification

    Classification Detailed standards
    Rating Input 3-phase 380V,100A (50kW) ~ 250A (150kW)
    Output DC 200Vdc ~ 500V, 100A / 250A
    Rating range ±10%
    Frequency 60Hz
    Environmental conditions Temperature -25℃ ~ 40℃
    Humidity 5% ~ 95% (there must be no dew formation)
    Protection grade IP55
    Safety Overvoltage
    Overcurrent Output cut-off
    User authentication type RFID card or smartphone app (Bluetooth connection)
    User interface LED standby, charging, error states Displays
    Voice guidance Charger status and user guidance
    Smart Phone User authentication, payment, fee charging functionality, etc
    Viewing function for charging fees, charging history, location, etc.
    Size 750mm(W) x 1,700mm(H) x 300mm(D)
