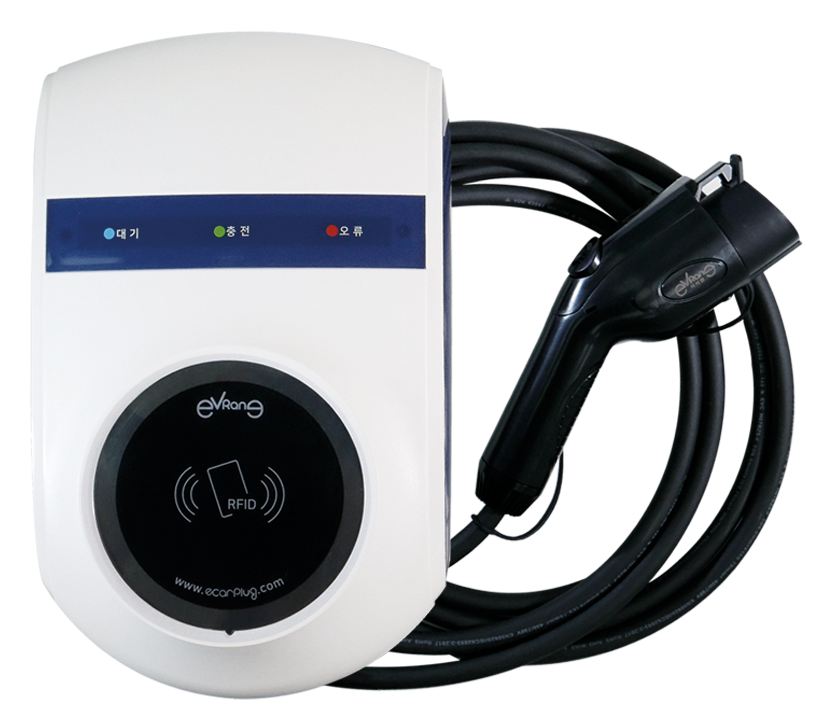

TYH model
Features
•Entry model
•Support scheduled charging function
•Suitable for home or private users
•User authorization & Charging control system
•RFID card
•Smart phone(Bluetooth connection)
•Auto charging mode support
•Easy power recovery by external earth leakage breaker
•Dimensions : 211mm(W) x 345mm(H) x 122mm(D)
•Support scheduled charging function
•Suitable for home or private users
•User authorization & Charging control system
•RFID card
•Smart phone(Bluetooth connection)
•Auto charging mode support
•Easy power recovery by external earth leakage breaker
•Dimensions : 211mm(W) x 345mm(H) x 122mm(D)
-
Specification
Classification Detailed standards Rating Input Single-phase AC 220V, 32A(7kW) Output Single-phase AC 220V, 0~32A(7kW) Rating range ±10% Frequency 60Hz Environmental conditions Temperature -25℃ ~ 40℃ Humidity 5% ~ 95% (there must be no dewiness) Protection grade IP44 Safety Overvoltage Output cut-off Overcurrent Output cut-off User authentication type RFID card or smartphone app (Bluetooth available) User interface LED Displays standby, charging, error states Voice guidance Charger status and user guidance Smart Phone User authentication, charging fee, payment function
viewing function for charging fees, charging history, location, etc.Size 211mm (W) × 345mm (H) × 122mm (D)
