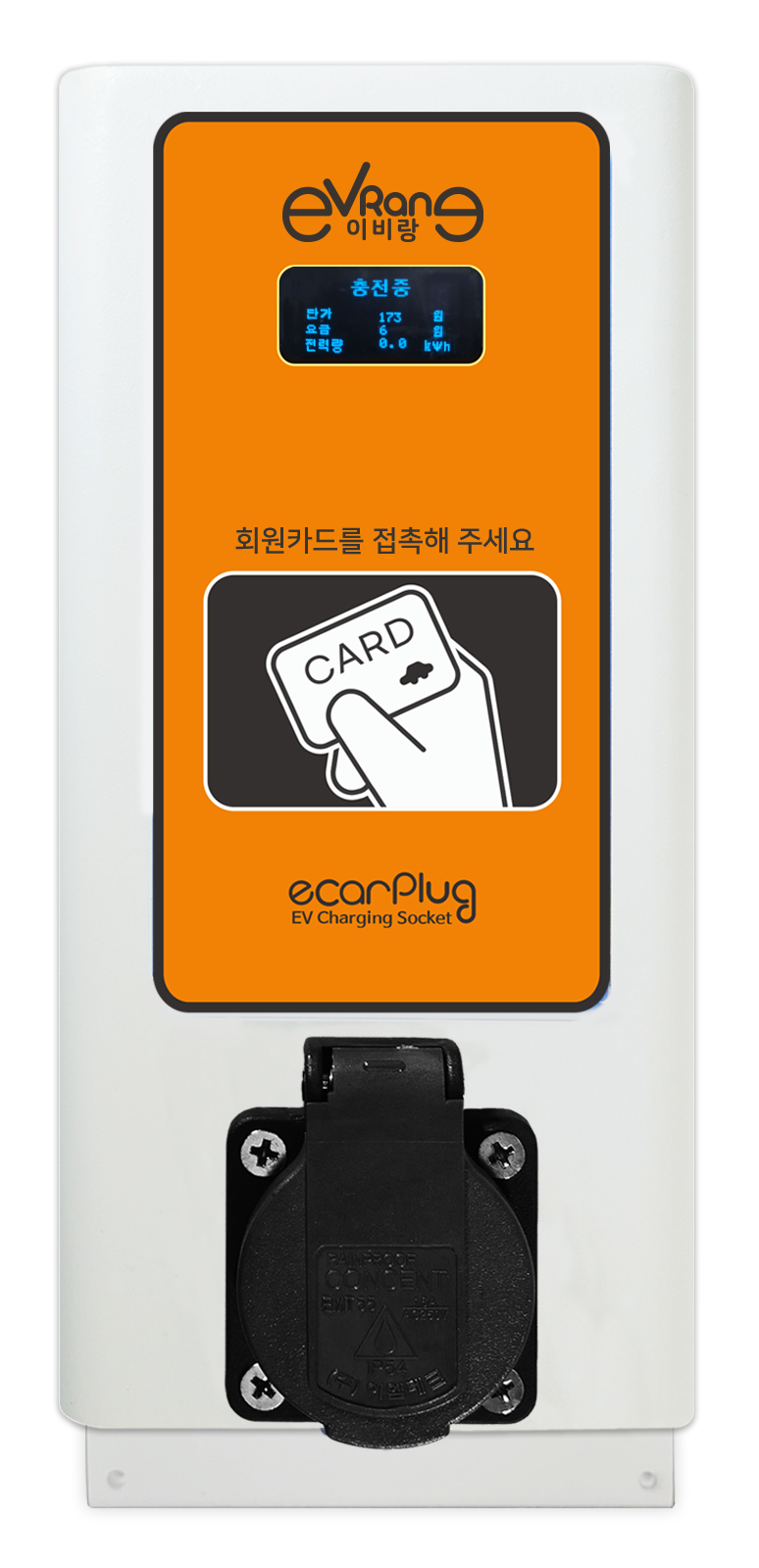

MOV model
Features
Socket Charger
•Easy product installation by securing parking lot
•Prevetion of "electicity theft"
-Accessed to the outlet by authorization
•Compatible to all types of portable chargers
•User friendly interface on mobile through Bluetooth connection
•Strong design against external impact
•User interface: RFID, status display LED, smartphone APP
•Support dual connections through mobile modem and mobile phone(APP) in parallel*
•Size: 110 mm (W) x 260mm (H) x 85 mm (D)
•Prevetion of "electicity theft"
-Accessed to the outlet by authorization
•Compatible to all types of portable chargers
•User friendly interface on mobile through Bluetooth connection
•Strong design against external impact
•User interface: RFID, status display LED, smartphone APP
•Support dual connections through mobile modem and mobile phone(APP) in parallel*
•Size: 110 mm (W) x 260mm (H) x 85 mm (D)
-
Specification
Classification Detailed standards Rating Input Single-phase AC 220V, 16A(3.5kW) Output Single-phase AC 220V, 0 ~ 16A(3.5kW) Rating range ±10% Frequency 60Hz Environmental conditions Temperature -25℃ ~ 40℃ Humidity 5% ~ 95% (there must be no dewiness) Protection grade IP44 Safety Overvoltage Output cut-off Overcurrent Output cut-off User authentication type RFID card or smartphone app (Bluetooth available) User interface LED Displays standby, charging, error states Voice guidance Charger status and user guidance Smart Phone User authentication, charging fee, payment function
viewing function for charging fees, charging history, location, etc.Size 110mm(W) x 260mm(H) x 85mm(D)
